ElTrim Trim Tab Motor Ram Actuator 12 or 24 Volt
  Home > Trim Tabs > ElTrim Trim Tabs and Spares

ElTrim Trim Tab Motor Ram Actuator 12 or 24 Volt
ElTrim Trim Tab Motor Ram Actuator 12 or 24 Volt ElTrim Trim Tab Motor Ram Actuator 12 or 24 Volt ElTrim Trim Tab Motor Ram Actuator 12 or 24 Volt ElTrim Trim Tab Motor Ram Actuator 12 or 24 Volt


ElTrim Trim Tab Motor Ram Actuator 12 or 24 Volt


 Eltrim trim tab ram Motor Actuator

12 or 24 volt motor ...... please select

With wiring for connection to controls and gauge instrument.

Popular Trim tab installed on Sealine boats. Please note the black bracket is available separately.

Wiring instructions for New Trim Rams to old colour coded wires included with new ram motor/ actuator

Cables are marked 1 to 5 and should only be connected to the matching number or damage to the unit may occur.

Older systems sometimes have colour coded wiring
Cable no. 1 - White = direction + or - (opposite to wire 2)
                   2 - Red = direction + or -  (opposite to wire 1)
                   3 - Yellow = position indicator
                   4 - Green = position indicator
                   5 - Brown = position indicator

Alternative wiring -

                               1 - White + / -
                               2 - Black + / -
                               3 - Blue - position indicator
                               4 - Brown - position indicator
                               5 - Grey - position indicator

Resistance measurement -  fully retracted  / Fully extended

Wire 3 to 4 =    1K ohm  /  6.45 ohm

Wire 3 to 5 =    6.45K ohm /  1K ohm

Wire 4 to 5 =    5.47K ohm  /  5.47K ohm



** please note, the casing colour may vary between grey or black depending on stock levels.**


Voltage


Our Price: £260.00


Related Products

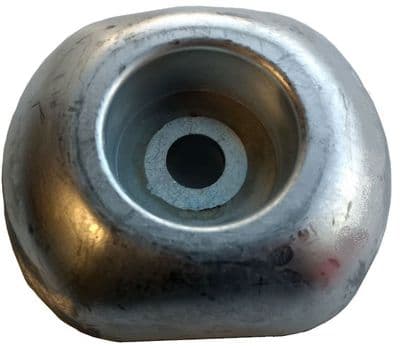

4" Button anode4" Button anode
£14.78
Eltrim Bellows - Trim tab ram actuator bellows fitted on SealinesEltrim Bellows - Trim tab ram actuator bellows fitted on Sealines
Eltrim Rubber bellows with fastenings
From: £19.99

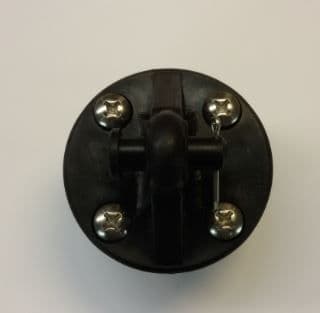

ElTrim Bracket / Flanch and fixingsElTrim Bracket / Flanch and fixings
