Genuine Racor 900FV10 Diesel Turbine Fuel Filter Replacing the 900FH Turbine Filter
Reliable Filtration for Peak Performance
Protect your engine with the Racor 900FV10, designed for superior fuel filtration in marine and industrial applications. Featuring high-efficiency micron filtration, this advanced turbine system removes dirt, rust, algae, and water, ensuring clean diesel for optimal engine performance.
Precision Filtration – 3-Stage Process
🔹 Stage One – Water Separation: Centrifugal force removes large contaminants and water droplets.
🔹 Stage Two – Coalescing: Small water particles gather and settle in the transparent collection bowl.
🔹 Stage Three – Fine Filtration: The specialized Aquabloc 10 Micron element eliminates finer impurities for smooth fuel delivery.
Key Features
✔ Efficient Micron Filtration – Fine fuel purification for reliable engine protection. (other Microns are available separately).
✔ See-Through Bowl Design – Easy monitoring of water separation for quick maintenance.
✔ High Flow Rate – Handles 341 LPH with precision 7/8"-14 UNF port sizing.
✔ Long-Lasting Aquabloc Technology – Outperforms standard water-absorbing filters.
✔ Compatible with Racor 2040 Series Elements – Customizable filtration to match your needs.
Upgrade your fuel system with the Racor 900FV10, engineered for efficiency and durability. Keep contaminants out and experience superior filtration technology that keeps your engine running stronger, longer.
Specifications:
Racor 900FV Turbine Filter Overview:
Maximum flow rate: 341 LPH (90GPH).
Application: Diesel ONLY not for gasoline.
Thread size: 7/8"-14 UNF.

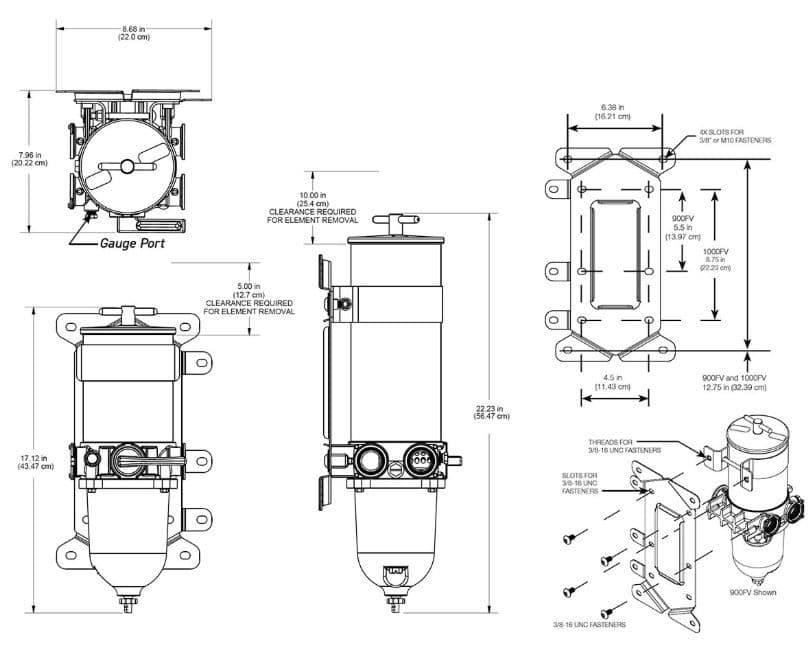

Dimensions (H x W x D): 432mm (17”) x 152mm (6”) x 178mm (7”). Element Removal Space: 127mmClean pressure Drop: 0.25PSI (1.7 kPa).
Maximum pressure: 15PSI (1bar).
