Propeller Cone Kit 23749222 for fixed propeller for S-drives
Propeller Cone Kit 23749222 for fixed propeller for S-drives
Propeller Cone Kit 23749222 for fixed propeller for S-drives
Propeller Cone Kit 23749222 for fixed propeller for S-drives
Propeller Cone Kit 23749222 for fixed propeller for S-drives

Product Description

Genuine Volvo Penta Propeller Cone Kit part no. 23749222 replacing part no. 22629322

Suitable for Sail-drive 110S, 120S, MS25S, 130S, 150S

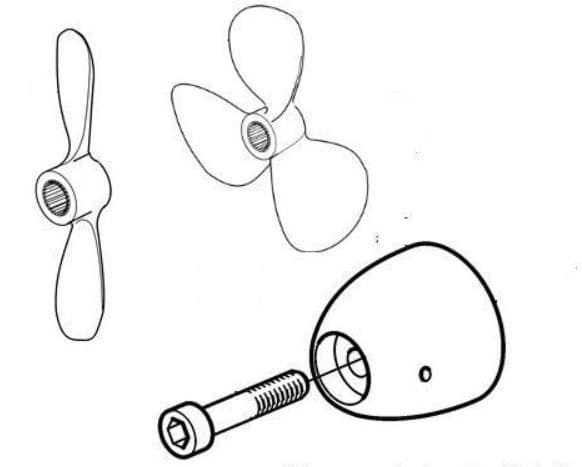

Genuine fixed propeller cone kit for Volvo Penta Saildrive, compatible with the current style 2- and 3-bladed fixed propellers that no longer require a plastic washer. This kit includes the cone and bolt designed specifically for the latest propeller model.

Note: Older-style cones with plastic washers are not compatible with the current propeller design.

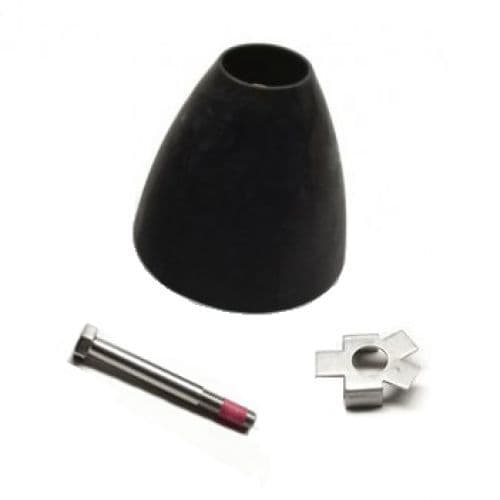

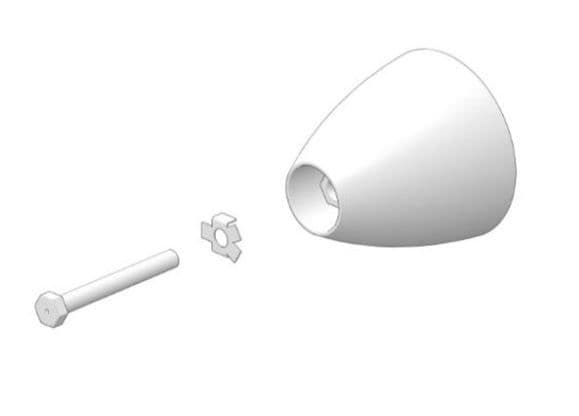

New Part Number 23749222 kit includes:
22427131 Propeller Cone Nut
23748333 Hollow Hex Bolt M8
23680979 Tab Lock Washer
Installation Instructions

Replaces Part Number 22629322 kit included:
22427131 Propeller Cone Nut
851773 Bolt M8 x 70mm
Installation Instructions

Replaces Old Part Number 850396
Volvo Penta Saildrive Propeller Cone Kit which had:
Cone, Bolt & Nylon Washer
850111 - Cone (Spinner)
850888 - Washer
851773 - Bolt M8 x 70mm

Specifications

Brand
VOLVO
Product Code
23749222 HS code 74153300 SE 0.5KG
Weight
1kg

We Deliver Nationally and Internationally

View Cart for delivery costs.

If you would like your order delivered outside of the E.U. please contact us

Or add the products to the cart and select  'Email me a final cost and delivery to my location'.

Customer Reviews

Propeller Cone Kit 23749222 for fixed propeller for S-drives

Product Code 23749222 HS code 74153300 SE 0.5KG

Installation hardware to fixed propeller for S-drive 110S, 120S, MS25S, 130S, 150S
